Installation
We recommend installation by a qualified service company.

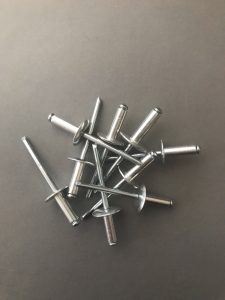

With an aluminum mast, you should always use suitable blind rivets to avoid damaging cordage or cables running in the mast.
Blind rivets are always preferable to screws.
Mounting is best done on a lying mast or with a mounting platform.
- Mount the 3Lenzz at a height of at least 5 meters above the water surface.
- If the mast is standing, we recommend preparing the mast holders at the bottom of the deck.
- To avoid damaging or scratching the mast, it is recommended to temporarily apply adhesive tape here for protection.
- Always use both mounting brackets.
- Secure the 3/4 threaded sleeves with a screw locking adhesive, such as (Loctite).
- Always attach the 3Lenzz to the front of the mast.
For carbon masts, we strongly recommend contacting a professional rigger or the mast manufacturer to avoid irreparable damage to the mast.
When mounting, always ensure that the 3Lenzz is not in, or directly adjacent to, the beam range of any on-board radar equipment. Mounting directly above or below a radar unit is possible
